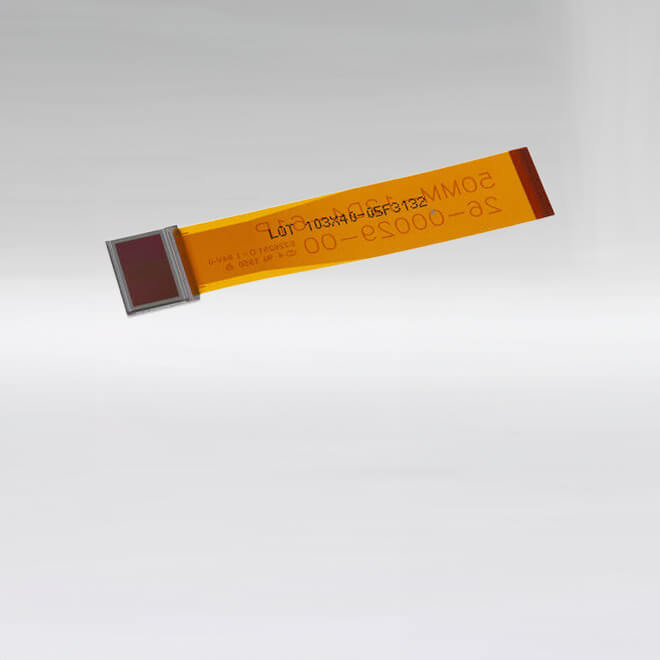

720p 0.49” OLED Green Display

The 720p 0.49” AMOLED Green Display is an Active Matrix Organic Light Emitting Diode (AMOLED) on green based silicon material with a resolution of 1280 x 720. This display utilizes high-performance single crystal silicon transistors and is the smallest (0.49″ diagonal) AMOLED for the resolution. The emissive 720p 0.49” AMOLED Green Display has the same display architecture as the industry standard LCD monitor or TV. This display is ideal for ultra-compact commercial, industrial, or rugged applications.

This display features Kopin’s low voltage architecture for low power consumption and compatibility with CMOS driver ICs. Bi-directional horizontal and vertical scanner circuits are integrated along with a sleep mode. The total dot active resolution is 1280 x 720 x 3 (2,764,800 dots). The 720p 0.49” AMOLED Green Color Display accepts standard RGB or YCbCr digital video input but only the green video inputs will be used.


Active Resolution 1280 x 720 x RGB + (8-pixel orbit on four sides)
Total Resolution 1296 x 736 x RGB
Color Dot Pitch 2.79 x 8.37 μm
Diagonal Ultra-Compact 0.49″


Standard Digital Video Input CMOS Level Digital Video
RGB or YCbCr Support (using the G inputs)
Frame Rates 60 – 120 Hz
Low Persistence Duty-Cycle Control Row Blanking


Color Space Conversion, Contrast, Brightness and Gamma Controls
Integrated Temperature Sensor
Bidirectional Horizontal and Vertical Scan Control
Built-in Ramp and VCOM Generator


Max Brightness (Typical) 10500 cd/m2
