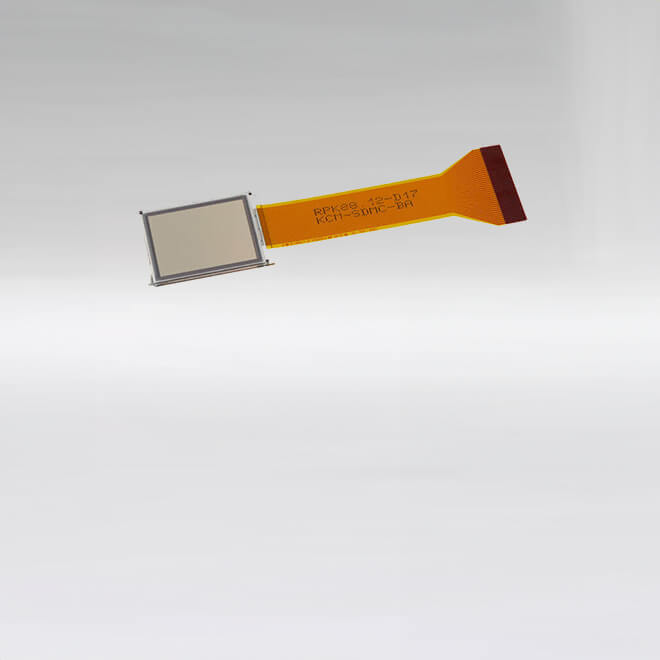

SXGA LCD 0.97” LCD Monochrome Display
The SXGA LCD Monochrome is an Active Matrix Liquid Crystal Display (AMLCD) with a resolution of 1280 x 1024. The SXGA LCD (0.97”) utilizes high-performance single crystal silicon transistors providing 1,310,720 active pixels.
The ultra-compact, ultra-low power, internal Common (VCOM) Line Heater SXGA is ideal for industrial or rugged applications.
The SXGA features Kopin’s low-voltage architecture for low-power consumption and compatibility with CMOS driver ICs. Bidirectional horizontal and vertical scanner circuits are integrated along with a sleep mode to simplify system power management. The internal Row and Common Line Heaters allow operations at low temperatures.
The SXGA LCD accepts parallel analog inputs and can be driven by Kopin’s A253 driver display. An efficient waveguide white LED backlight is used for LCD illumination.
Active Resolution | 1280 x 1024 |
Pixel Pitch | 15.0 x 15.0 μm |
Diagonal | Ultra-Compact 0.97″ |
Active Pixel Area | 19.20 mm x 15.36 mm |
Aspect Ratio |
Video
Video Input Interface, Parallel Analog |
Simple Interface for CMOS Compatible Driver Chips |
Frame Rates up to 60 Hz
Controls
Bidirectional Horizontal and Vertical Scan Control |
Integrated Low-Voltage Control |
Internal Common Line (VCOM) Heater Capability During Scanning
Waveguide Backlight
Max Brightness (Typical) | 17131 cd/m2 (Backlight Dependent) |
Contrast Ratio (Typical) |
> 142:1
