Emerald SVGA 0.44” Color and Mono Integrated Display Modules

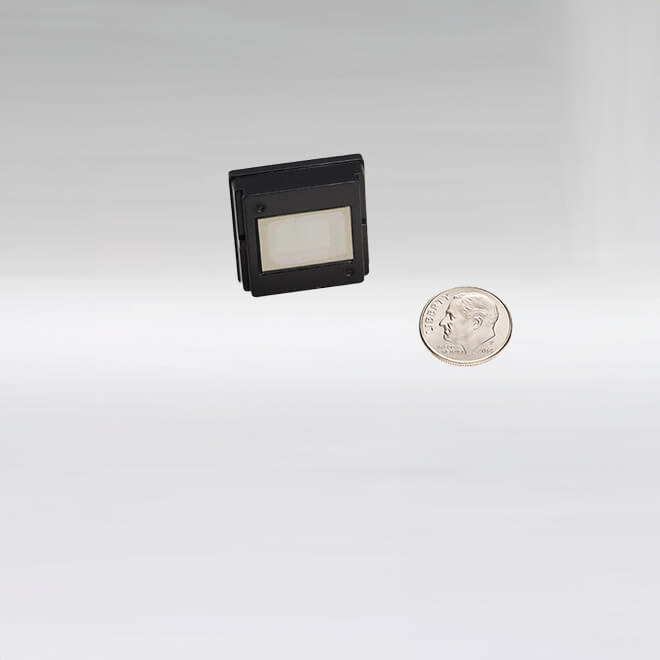

The Emerald SVGA 0.44” Color and Mono Display Modules are fully integrated into a digital display module aimed for commercial or industrial or rugged applications. This includes a transmissive SVGA 0.44” color or mono LCD (804 x 604 resolution) that’s masked to provide a SVGA (800 x 600 resolution) viewing area, an efficient waveguide backlight, and integrated driver electronics and optical options.
The Emerald Color and Mono Displays with Kopin’s A251 Display Driver Board consume less than 205 and 130 mW respectively at display brightness of 102 cd/m2. Further system power savings are achievable using capabilities on the ASIC and LCD.
The Ruby Color and Mono Display with Kopin’s A251 Display Driver Board consume less than 355 and 225 mW respectively at display brightness of 102 cd/m2. Further system power savings are achievable using capabilities on the ASIC and LCD.
| Active Resolution + (2-pixel horizontal and vertical orbit) | 800 x 600 x RGB |
|---|---|
| Total Resolution | 804 x 604 x RGB |
| Contrast Ratio (Typical) | 100:1 |
| Dot Pixel Pitch | 3.75 x 11.25 μm |
| Ultra-Compact | 0.44″ (Diagonal) |
| Active Pixel Area | 9 mm x 6.75 mm |
| Aspect Ratio | 4:3 |
| Non-Uniformity | < 20% Large Area / < 12% Small Area |
| (Mono) Active Resolution | 800 x 600 (Mono) |
| (Mono) Pixel Size | 11.25 x 11.25 μm |
Optics
| Options available on request |
|---|
Video Input Interface
| Parallel SVGA (800 x 600) 24-bit Color or 8-bit Mono |
|---|
| Parallel VGA (640 x 480) 24-bit Color or 8-bit Mono |
Frame Rate
| 60 Hz |
|---|
Functionality
| Image Flip Horizontal and Vertical |
|---|
| Calibrated Brightness and Gamma |
| Internal Video Test Patterns |
| Control Interface: I2C |
Brightness
| Waveguide Backlight | |
|---|---|
| Max Brightness | > 343 cd/m2 (Dependent on Backlight) |
| Contrast Ratio (Typical) | > 100:1 |
Mechanical
| Dimension | 25.9 (W) x 25.9 (H) x 9.5 (D) mm |
|---|---|
| Weight | < 7g |
| Mounting Brackets | 2 or 4 |
Drive Electronics
| A251 Integrated Driver Board or latest A253 ASIC |
|---|
Power Consumption
| < 2055 mW (Color) at 102 cd/m2 |
|---|
| < 130 mW (Mono) at 102 cd/m2 |
